Product Detail

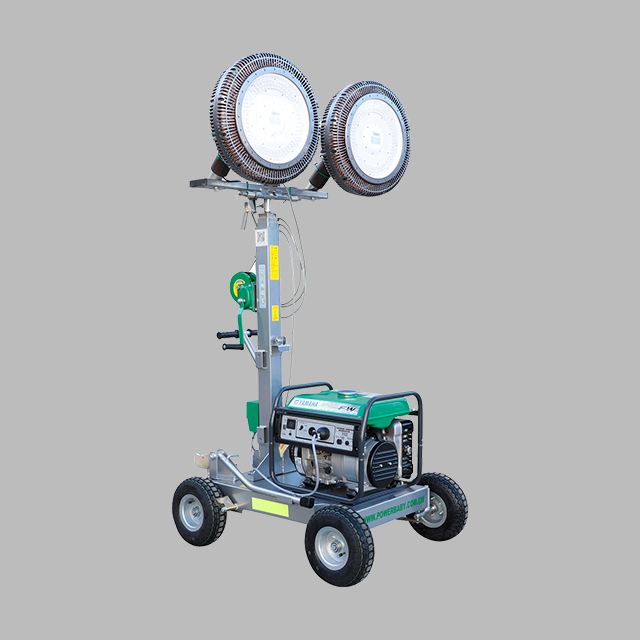

PB1200-LED

●Lamp power:400w 2 Import LED lamps.
●Energy saving and environmen protection LED light can save 50% fuel than traditional metal halide light.
●POWER(Standard configuration): Gasoline generator EF2600FW. Normal lighting,still can supply 1000W power.
●Cost: Only.2L/h, saving approx RMB100/day fuel.
●Reliable performance: LED lights have long life, more five years or least 50000 hours of light without replacement.
●No light loss: Direct projection lighting, No lumen depreciation.
●Maintenance: No need replacing bulb and lamp. No maintenance cost.
●Light source advantage: LED without blinking, Stronger penetration, Objects more clearly.
●Safer: Instant light up, reduce secondary disasters and casualties.
Availability:
Quantity:
  • PB1200-LED
  • Powerbaby
  • 9405409000

图纸1200LED

400WLED3

SPECIFICATION
ELECTRICAL
• Power Input : AC 200 - 277V
• Frequency : 50/60 Hz
• Power Factor(PF) : > 0.96
•Total Harmonic Distortion : < 15%

OPTICS
• Lumen output (@5700K) : 60,000 lm
• Efficacy : 150 lm/W
• Replacement : MH 1 kW
• CCT(K) : Standard-3000/5700, Option-2700/4000/5000
• LED Package Life time : 50,000 hours (25℃)
※ LED package life time according to industry standard (LM80).
    ※ High operating temperature may shorten life span of LED package and LED lamp.



HIGH PERFORMANCE
• Designed for 1:1 retrofit with self-ballasted internal driver
• LED replacement for 1kW MH with 60% electricity saving
• IP67 available for outdoor waterproof usage
• Compact & versatile design with 360° installation angle
• Various lens options to achieve the optimal illumination
• Circular LED array for excellent luminance uniformity
• Flicker-free for eye comfort
• Embedded fire protection system and surge protector
•Superb heat dissipation



WHY LITEMAN
Highly Efficient heatsink was created by Fluid Dynamic Pressure Technology, which enables heat dissipation 200 times faster (40,000 W/m∙K) than that of conventional aluminum (Al) heatsink. Liquid circulation takes place inside the pipe, traveling through the coil and cooling down heat from the LEDS in the most efficient way.

50

•The fastest heat transfer rate
•Efficient air flow
•Uses light weight copper

ITEM

PB1200-LED

Light

Housing Material

Corrosion resistant Polycarbonate covers

Power of lights

2×400W LED Light

Lumen Output

2×60,000lm ( total )

Voltage

AC 200-277V

Frequency

50/60Hz

Lifetime of lamps

50,000 Hrs

Waterproof grade

IP67

Color temperature

3000K-5700K

Mast

Material of mast

Galvanized steel

Mast lifting type

Manual mast

Mast rotation system(Lamp bracket)

358° manual operation

Mast section

4

Max. height of mast

4.65 meters

Gasoline Generator

Type

YAMAHA EF2600FW

Engine model

MZ175 : 4-stroke OHV pressure air cooled

Start system

Recoil (Hand start)

Alternator

Brushless AC Generator / Single Phase

Rated power

50hz/2.0KVA

Max power

2.3KVA

Fuel tank capacity

12L

Fuel consumption

1.2L/hr

Operating hours

10.6hrs

Voltage regulator

Voltage regulator

Circuit breaker system

Electro magnetic

Net weight

41kg

Trolley

Stabiliser Supports

2×Manual

Number of Tires

4

Tire Size

3.50-5 pneumatic tire (diameter 10.6 inch)

Brakes

Manual

Packing

Net weight

142kg

Dimension

1,080×780×1,660 mm
