Product Detail

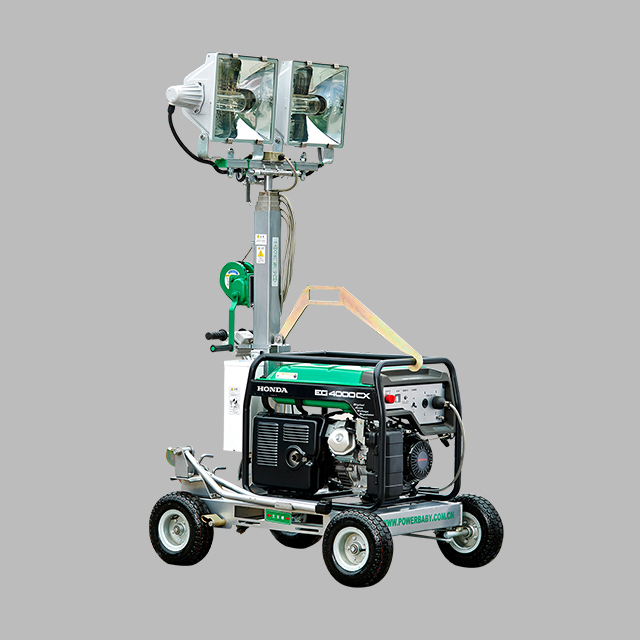

PB1200

●Metal halide lamp 1000W x 2 lamps.
●4 stages mast up to 4.95m.
●Easy-lifting with new design self-locking winch.
●High luminance and high power.
Availability:
Quantity:
  • PB1200
  • Powerbaby
  • 9405409000

ITEM

PB1200

Light

Housing Material

Aluminium die cast

Power of lights

2×1000W Metal halide lamp

Lumen Output

2×110,000lm ( total )

Voltage

AC 220-240V

Frequency

50/60Hz

Lifetime of lamps

8000 Hrs

Waterproof grade

IP65

Color temperature

4000K

Mast

Material of mast

Galvanized steel

Mast lifting type

Manual mast

Mast rotation system(Lamp bracket)

358° manual operation

Mast section

4

Max. height of mast

4.95 meters

Gasoline Generator

Type

HONDA EG4000CX

Engine model

GX270H1 : Single cylinder 4-stroke  air cooled

Start system

Recoil (Hand start)

Alternator

Brushless AC Generator / Single Phase

Rated power

50hz/3.2KVA

Max power

3.6KVA

Fuel tank capacity

24L

Fuel consumption

2.0L/hr

Operating hours

11.9hrs

Voltage regulator

Voltage regulator

Circuit breaker system

Electro magnetic

Trolley

Stabiliser Supports

2×Manual

Number of Tires

4

Tire Size

3.50-5 pneumatic tire (diameter 10.6 inch)

Brakes

Manual

Packing

Net weight

208kg

Dimension

1,160×830×1,670 mm
