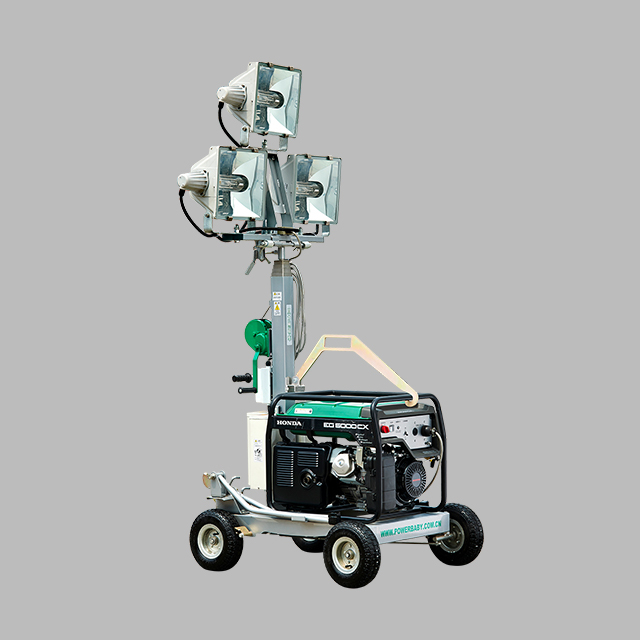

PB1300

Light

Housing Material

Aluminium die cast

Power of lights

3×1000W Metal halide lamp

Lumen Output

3×110,000lm ( total )

Voltage

AC 220-240V

Frequency

50/60Hz

Lifetime of lamps

8000 Hrs

Waterproof grade

IP65

Color temperature

4000K

Mast

Material of mast

Galvanized steel

Mast lifting type

Manual mast

Mast rotation system(Lamp bracket)

358° manual operation

Mast section

4

Max. height of mast

5.1 meters

Gasoline Generator

Type

HONDA EG5000CX

Engine model

GX340H1 : Single cylinder 4-stroke  air cooled

Start system

Recoil (Hand start)

Alternator

Brushless AC Generator / Single Phase

Rated power

50hz/4.0KVA

Max power

4.5KVA

Fuel tank capacity

24L

Fuel consumption

2.5L/hr

Operating hours

9.5hrs

Voltage regulator

Voltage regulator

Circuit breaker system

Electro magnetic

Trolley

Stabiliser Supports

2×Manual

Number of Tires

4

Tire Size

3.50-5 pneumatic tire (diameter 10.6 inch)

Brakes

Manual

Packing

Net weight

239kg

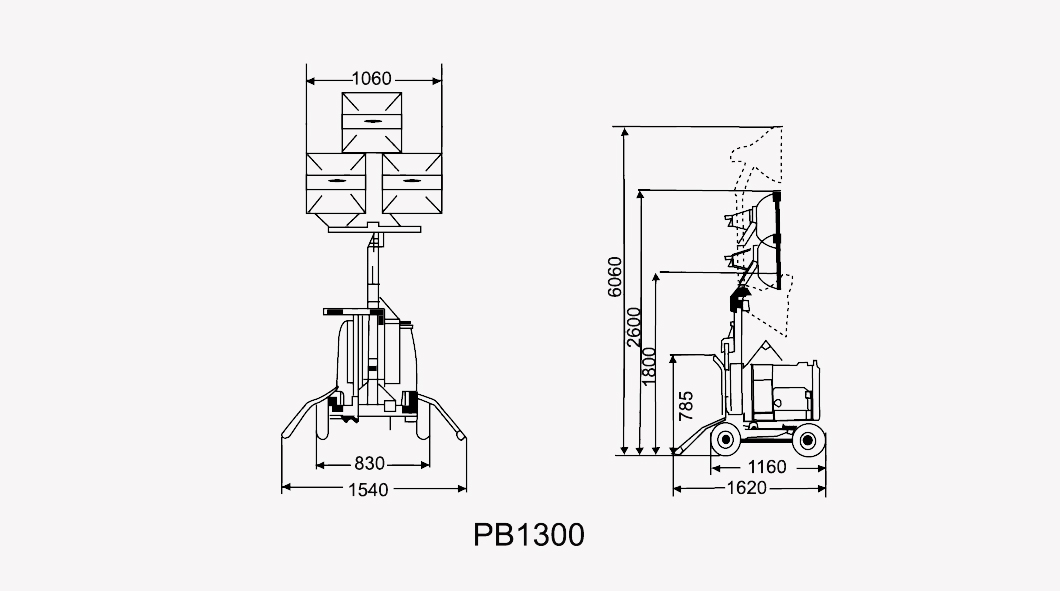

Dimension

1,160×830×1,800 mm
