Product Detail

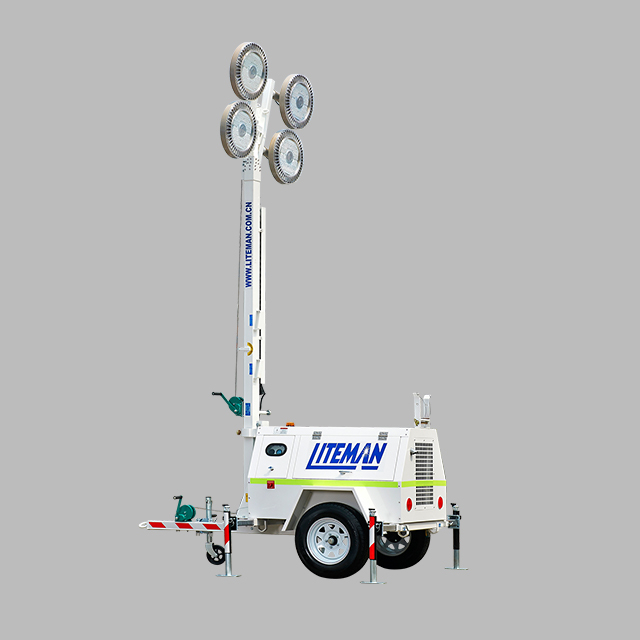

PB1400TMW-LED

●led 400Wx4 lamps, can save60% electric energy.
●LED light can save50% fuel than traditional metal halide light; It can purchase one set new Light tower for 5 vears of cost savings.
●LED lights have long life, more five years or least 50000 hours of light without replacement.
●LED without blinking, stronger penetration, Objects more clearly.
●Instantaneous lighting and instant restrike with no warm up or standby time required.
●Instant light up, reduce secondary disasters and casualties.
●Full 360 mast rotation. Light bar 120 electrical waving, light source can realize the full range of lighting without dead angle.
Availability:
Quantity:
  • PB1400TMW-LED
  • Powerbaby/LITEMAN
  • 9405409000

49

SPECIFICATION
ELECTRICAL
• Power Input : AC 200 - 277V
• Frequency : 50/60 Hz
• Power Factor(PF) : > 0.96
•Total Harmonic Distortion : < 15%

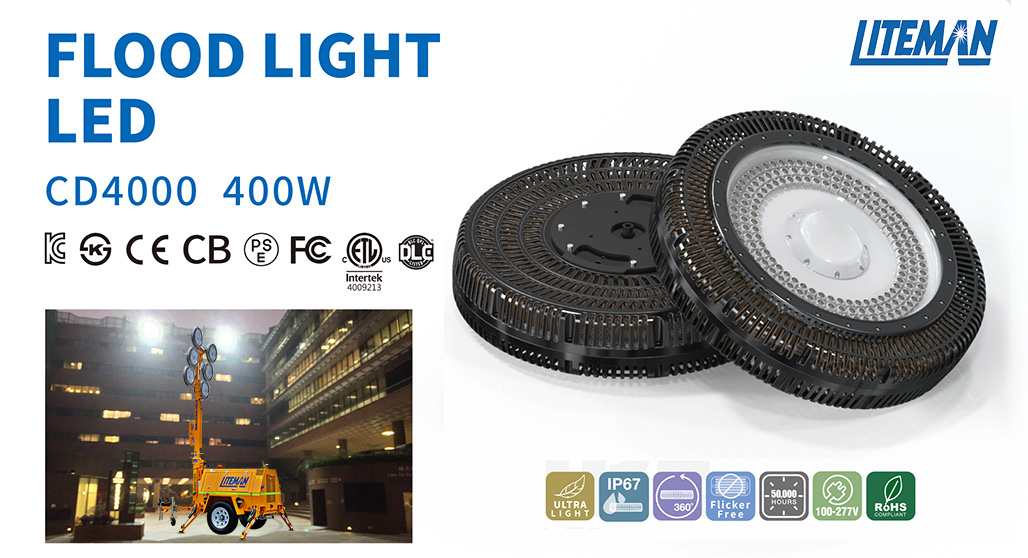

OPTICS
• Lumen output (@5700K) : 60,000 lm
• Efficacy : 150 lm/W
• Replacement : MH 1 kW
• CCT(K) : Standard-3000/5700, Option-2700/4000/5000
• LED Package Life time : 50,000 hours (25

LED package life time according to industry standard (LM80).
High operating temperature may shorten life span of LED package and LED lamp.



HIGH PERFORMANCE
• Designed for 1:1 retrofit with self-ballasted internal driver
• LED replacement for 1kW MH with 60% electricity saving
• IP67 available for outdoor waterproof usage
• Compact & versatile design with 360° installation angle
• Various lens options to achieve the optimal illumination
• Circular LED array for excellent luminance uniformity
• Flicker-free for eye comfort
• Embedded fire protection system and surge protector
•Superb heat dissipation



WHY LITEMAN
Highly Efficient heatsink was created by Fluid Dynamic Pressure Technology, which enables heat dissipation 200 times faster (40,000 W/m∙K) than that of conventional aluminum (Al) heatsink. Liquid circulation takes place inside the pipe, traveling through the coil and cooling down heat from the LEDS in the most efficient way.

50

•The fastest heat transfer rate
•Efficient air flow
•Uses light weight copper

ITEM

PB1400TMW-LED

Light

Housing Material

Corrosion resistant Polycarbonate covers

Power of lights

4×400W LED Light

Lumen Output

4×60,000lm ( total )

Voltage

AC 200-277V

Frequency

50/60Hz

Lifetime of lamps

50,000 Hrs

Waterproof grade

IP67

Color temperature

3000K-5700K

Mast

Material of mast

Stainless steel

Mast lifting type

Manual mast

Mast rotation system

358° manual operation

Mast section

3

Max. height of mast

9 meters

Light bar rotation

120° Electrical waving

Diesel Engine

model

Perkins 403D-11G, 3 cylinder, 4-stroke, water cooled

Start system

Electric (Battery start)

Engine speed

50hz/1500rpm,

Rated power

50hz/8.6kw

Fuel tank capacity

Auxiliary oil tank:105L

Fuel consumption

2.3L/hr

Controller system

Independent control panel

Generator

model

FARADAY FD1B1-4

Rated  power

5.9kw

Rated frequency

50hz

Rated Voltage

220V

Insulation class

H

Electrical protection system

Automatic

Trailer

Stabiliser Supports

4×Manual

Tow Hitch

Ring/ball hitch

Tire Size

14inch

Brakes

Manual

Packing

Net weight

950kg

Dimension

4,570X1,550X1,500 mm
