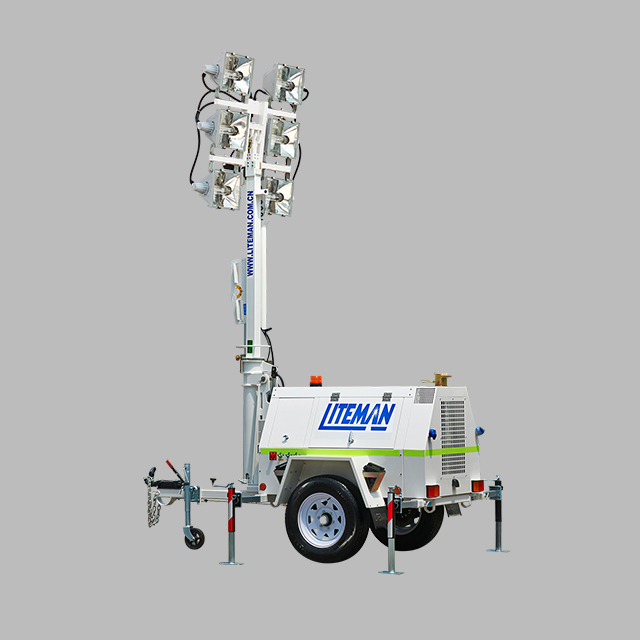

ITEM | PB1600THW |
Light | |
Housing Material | Aluminium die cast |
Power of lights | 6×1000W Metal halide lamp |
Lumen Output | 6×110,000lm ( total ) |
Voltage | AC 220-240V |
Frequency | 50/60Hz |
Lifetime of lamps | 8000 Hrs |
Waterproof grade | IP65 |
Color temperature | 4000K |
Mast | |
Material of mast | Stainless steel |
Mast lifting type | Hydraulic mast |
Mast rotation system | 358° manual operation |
Mast section | 3 |
Max. height of mast | 9.2 meters |
Light bar rotation | 120° Electrical waving |
Diesel Engine | |
model | Perkins 403D-15G, 3 cylinder, 4-stroke, water cooled |
Start system | Electric (Battery start) |
Engine speed | 50hz/1500rpm, |
Rated power | 50hz/12.2kw |
Fuel tank capacity | Auxiliary oil tank：105L |
Fuel consumption | 2.8L/hr |
Controller system | Digital control panel |
Generator | |
model | FARADAY FD1D1-4 |
Rated power | 8.6kw |
Rated frequency | 50hz |
Rated Voltage | 220V |
Insulation class | H |
Electrical protection system | Automatic |
Trailer | |
Stabiliser Supports | 4×Manual |
Tow Hitch | Ring/ball hitch |
Tire Size | 16inch |
Brakes | Manual |
Packing | |
Net weight | 1,350kg |
Dimension | 4,570X1,750X2,100 mm |
