PB1600THWHL-LED
Powerbaby/LITEMAN
9405409000
SPECIFICATION
ELECTRICAL
• Power Input : AC 200 - 277V
• Frequency : 50/60 Hz
• Power Factor(PF) : > 0.96
•Total Harmonic Distortion : < 15%
OPTICS
• Lumen output (@5700K) : 60,000 lm
• Efficacy : 150 lm/W
• Replacement : MH 1 kW
• CCT(K) : Standard-3000/5700, Option-2700/4000/5000
• LED Package Life time : 50,000 hours (25℃)
※ LED package life time according to industry standard (LM80).
※ High operating temperature may shorten life span of LED package and LED lamp.
HIGH PERFORMANCE
• Designed for 1:1 retrofit with self-ballasted internal driver
• LED replacement for 1kW MH with 60% electricity saving
• IP67 available for outdoor waterproof usage
• Compact & versatile design with 360° installation angle
• Various lens options to achieve the optimal illumination
• Circular LED array for excellent luminance uniformity
• Flicker-free for eye comfort
• Embedded fire protection system and surge protector
•Superb heat dissipation
WHY LITEMAN

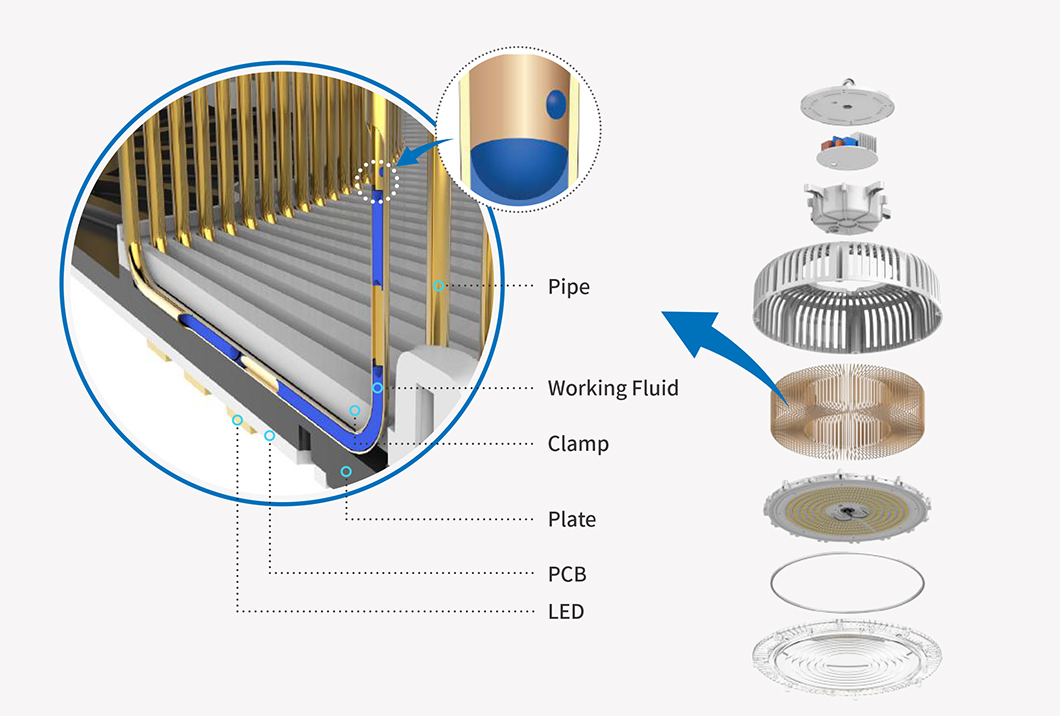

Highly Efficient heatsink was created by Fluid Dynamic Pressure Technology, which enables heat dissipation 200 times faster (40,000 W/m∙K) than that of conventional aluminum (Al) heatsink. Liquid circulation takes place inside the pipe, traveling through the coil and cooling down heat from the LEDS in the most efficient way.
•The fastest heat transfer rate
•Efficient air flow
•Uses light weight copper

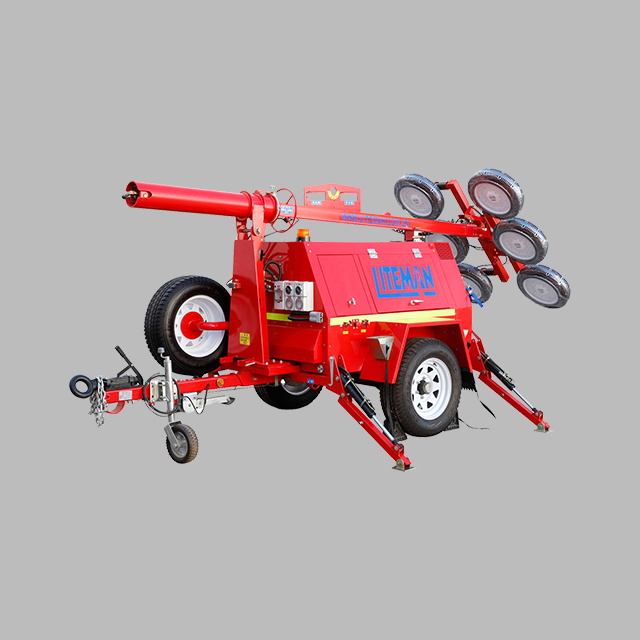

ITEM | PB1600THWHL-LED |
Light | |
Housing Material | Corrosion resistant Polycarbonate covers |
Power of lights | 6×400W LED Light |
Lumen Output | 6×60,000lm ( total ) |
Voltage | AC 200-277V |
Frequency | 50/60Hz |
Lifetime of lamps | 50,000 Hrs |
Waterproof grade | IP67 |
Color temperature | 3000K-5700K |
Mast | |
Material of mast | Stainless steel |
Mast lifting type | Hydraulic mast |
Mast rotation system | 358° manual operation |
Mast section | 3 |
Max. height of mast | 9.2 meters |
Light bar rotation | 120° Electrical waving |
Diesel Engine | |
model | Kubota D1105, 3 cylinder, 4-stroke, water cooled |
Start system | Electric (Battery start) |
Engine speed | 50hz/1500rpm, |
Rated power | 50hz/8.4kw |
Fuel tank capacity | Auxiliary oil tank:105L |
Fuel consumption | 2.3L/hr |
Controller system | Digital control panel |
Generator | |
model | STAMFORD PI0 44F |
Rated power | 6.7kw |
Rated frequency | 50hz |
Rated Voltage | 220V |
Insulation class | H |
Electrical protection system | Automatic |
Trailer | |
Stabiliser Supports | 4×Hydraulic |
Tow Hitch | Ring/ball hitch |
Tire Size | 16inch |
Brakes | Manual |
Packing | |
Net weight | 1,350kg |
Dimension | 4,670X1,750X2,200 mm |
