Product Detail

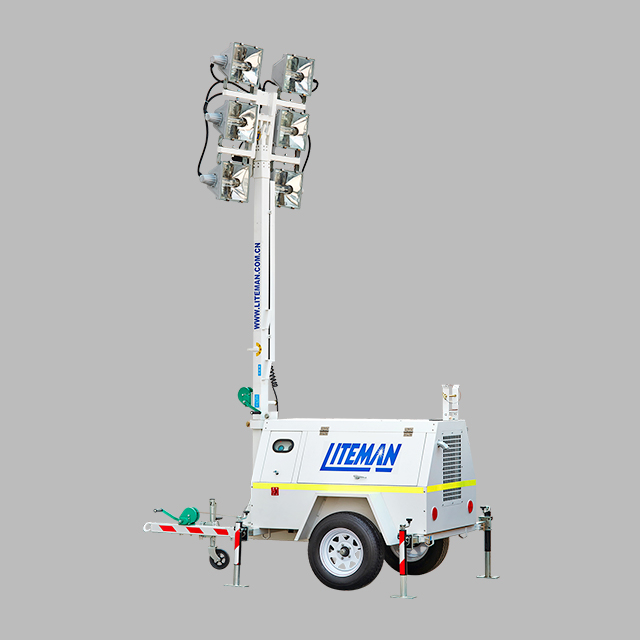

PB1600TMW

●Metal Halide Lamp1000×6 lamps.
●Telescopic, mechancial, 3 stages mast up to 9 meters.
●New unique high pressure aluminum lamps.
●Heavy-duty winch design and integral forkklift pockets.
●Manual winch for raising and lowering mast.
●Light bar120° electrical waving.
●Tower rotates to360°
●Manual winch for extending and retracting mast.
●Separate lockable, weather protected, powder-coated- steel door.
●Emergency shutdown protection.
●Residual current device(rcd) protection.
Availability:
Quantity:
  • PB1600TMW
  • Powerbaby/LITEMAN
  • 9405409000

ITEM

PB1600TMW

Light

Housing Material

Aluminium die cast

Power of lights

6×1000W Metal halide lamp

Lumen Output

6×110,000lm ( total )

Voltage

AC 220-240V

Frequency

50/60Hz

Lifetime of lamps

8000 Hrs

Waterproof grade

IP65

Color temperature

4000K

Mast

Material of mast

Stainless steel

Mast lifting type

Manual mast

Mast rotation system

358° manual operation

Mast section

3

Max. height of mast

9.2 meters

Light bar rotation

120° Electrical waving

Diesel Engine

model

Perkins 403D-15G, 3 cylinder, 4-stroke, water cooled

Start system

Electric (Battery start)

Engine speed

50hz/1500rpm,

Rated power

50hz/12。2kw

Fuel tank capacity

Auxiliary oil tank:105L

Fuel consumption

2.3L/hr

Controller system

Independent control panel

Generator

model

FARADAY FD1D1-4

Rated  power

8.6kw

Rated frequency

50hz

Rated Voltage

220V

Insulation class

H

Electrical protection system

Automatic

Trailer

Stabiliser Supports

4×Manual

Tow Hitch

Ring/ball hitch

Tire Size

14inch

Brakes

Manual

Packing

Net weight

1050kg

Dimension

4,570X1,550X1,700 mm
