Product Detail

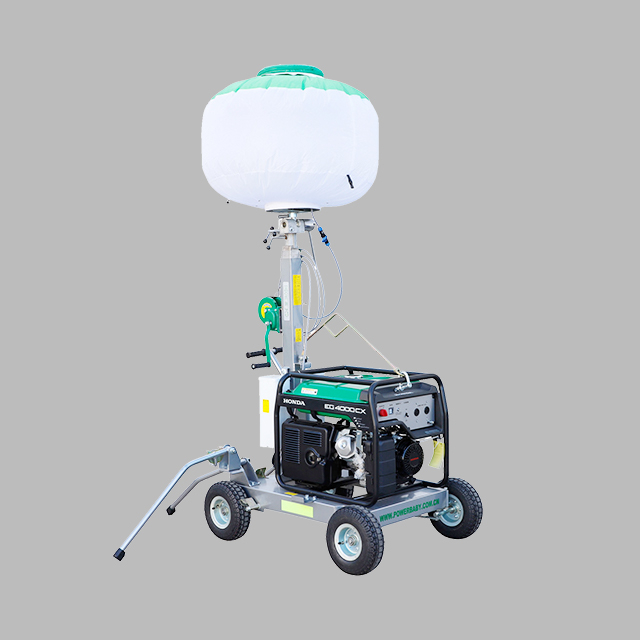

PB2000B

●Anti-glare, shadowless, high luminance and large-scale illumination in the range of 360 Safe for the driver's eves and easy to recognize the construction site in the distance and guarantees safety construction.
●Light pollution-free. It protects the environment and improves construction conditions.
●Advertisements can be made on the surface of balloon to improve enterprise's popularity.
●Applicable for large-scale outdoor events such as concerts, sport events, etc.
●Applicable for the safety construction of highways, expressways and airport.
Availability:
Quantity:
  • PB2000B
  • Powerbaby
  • 9405409000

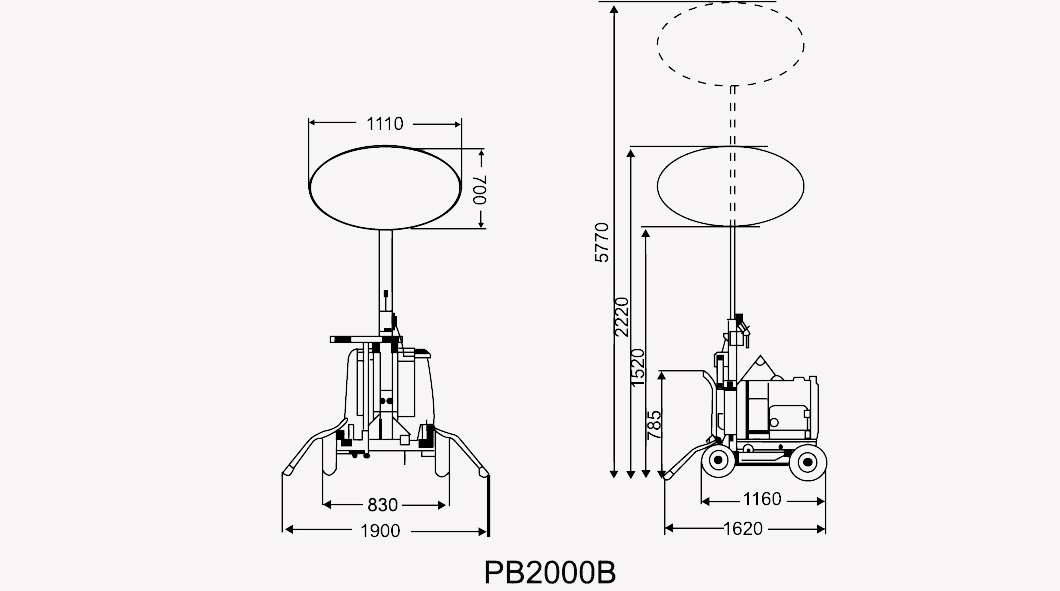

图纸2000B

ITEM

PB2000B

Light

Housing Material

Aero-material

Power of lights

2×1000W Metal halide lamp

Lumen Output

2×110,000lm ( total )

Voltage

AC 220-240V

Frequency

50/60Hz

Lifetime of lamps

8000 Hrs

Color temperature

4000K

Mast

Material of mast

Galvanized steel

Mast lifting type

Manual mast

Mast rotation system(Lamp bracket)

358° manual operation

Mast section

4

Max. height of mast

4.95 meters

Gasoline Generator

Type

HONDA EG4000CX

Engine model

GX270H1 : Single cylinder 4-stroke  air cooled

Start system

Recoil (Hand start)

Alternator

Brushless AC Generator / Single Phase

Rated power

50hz/3.2KVA

Max power

3.6KVA

Fuel tank capacity

24L

Fuel consumption

2.0L/hr

Operating hours

11.9hrs

Voltage regulator

Voltage regulator

Circuit breaker system

Electro magnetic

Trolley

Stabiliser Supports

2×Manual

Number of Tires

4

Tire Size

3.50-5 pneumatic tire (diameter 10.6 inch)

Brakes

Manual

Packing

Net weight

208kg

Dimension

1,160×830×1,670 mm
