Product Detail

PB3000BT

●Mechanical lifting mast: stages up to 9.2m, 360 rotation.
●Five out rigger support legs, anti-wind 8. Optional wind resistanoe reinforcement devioe.
●Tractive design; Loading and unloading configuration: hoisting ring forklift holes.
●High efficiency shock absorbed rubber torsion shaft; Optional tail brake light.
●Balloon construction: adopted reliable performance& high pressure& double--deck fan, stronger wind resistance.
●Balloon envelop is made up of exclusive rain proof imported fabric materials, better light transmission, rain proof, sun protection, anti-aging and toughness etc.
●Standard configuration: KIPOR KDE6500E diesel engine, electrical starter, Max output power 5.0KVA, more than 37 hours continuous work with full tank.
Availability:
Quantity:
  • PB3000BT
  • Powerbaby/LITEMAN
  • 9405409000

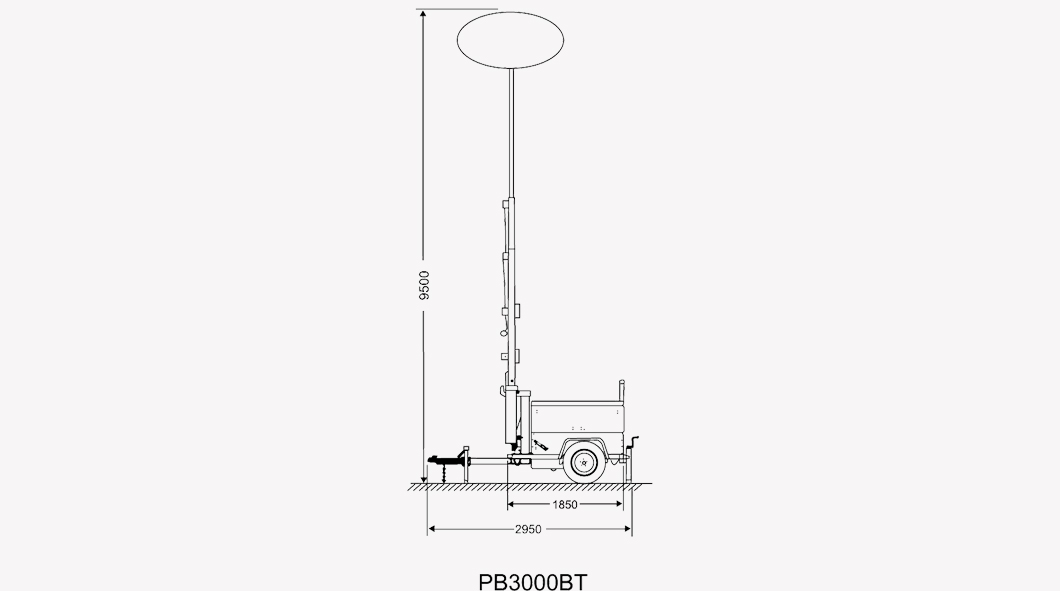

图纸3000BT

ITEM

PB3000BT

Light

Housing Material

Aero-material

Power of lights

3×1000W Metal halide lamp

Lumen Output

3×110,000lm ( total )

Voltage

AC 220-240V

Frequency

50/60Hz

Lifetime of lamps

8000 Hrs

Color temperature

4000K

Mast

Material of mast

Stainless steel

Mast lifting type

Manual mast

Mast rotation system

358° manual operation

Mast section

3

Max. height of mast

9.2 meters

Diesel Generator

Type

KDE6500E

Engine model

KM186FA,single cylinder, 4-stroke, water cooled

Start system

Electric (Battery start)

Alternator

Brushless AC Generator / Single Phase

Rated power

50hz/4.6KW

Max power

5KW

Fuel tank capacity

Auxiliary oil tank:100L

Fuel consumption

2.7L/hr

Operating hours

37hrs

Net weight

105kg

Trailer

Stabiliser Supports

4×Manual

Tow Hitch

Ring/ball hitch

Tire Size

14inch

Brakes

Manual

Packing

Net weight

720kg

Dimension

4,570X1,550X1,500 mm
